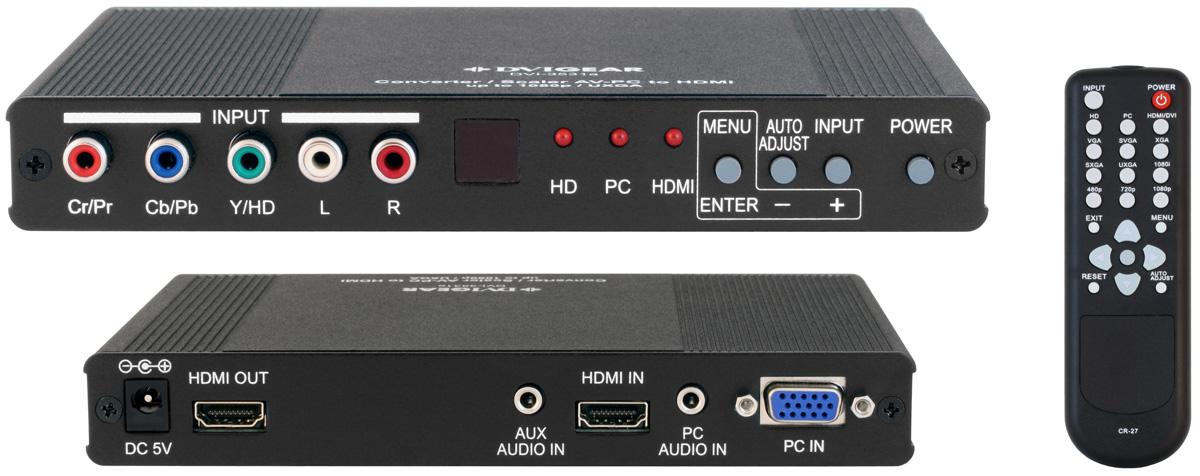

AV-PC to HDMI Converter/Scaler

Download User Manual

The AV-PC to HDMI Converter / Scaler is a highly versatile unit that provides user-selection between three different input signal formats: DVI-D or HDMI, analog VGA and analog Component Video. Each input format supports its own stereo audio connection. The selected input signal is converted to a digital HDMI signal with embedded audio. This unit accepts a wide range of input signal resolutions and support pixel clock rates up to 165 MHz. Most importantly, it provides user-selectable output resolutions up to 1080p and 1920x1200 (W-UXGA) using two high-performance internal scaling engines.

Key Features:

• Supports Analog + Digital HDTV inputs up to 1080p resolution
• Supports Analog + Digital PC inputs to 1920x1200 / 60Hz resolution
• Digital HD Video Output up to 1080p resolution
• Digital PC RGB Output to 1920x1200 / 60Hz resolution
• Supports both YPbPr and YCbCr HDTV input formats
• Analog audio inputs are integrated into digital HDMI output
• Twin high performance scaling engines
• 3-D Motion Adaptive De-Interlacers
• 3-D Noise Reduction
• 3:2 Pull-Down w/2:2 Pull-Down Recovery
• 8 Bit Triple-ADC/PLL
• Intuitive On-Screen Display
• Front Panel or Infrared Remote Control
