Single-Link DVI Fiber Optic Extender, 1x SC
Single-Link DVI Fiber Optic Extender, 1x SC
Model No:  DVI-7315

$995.00

Availability: Usually ships the next business day

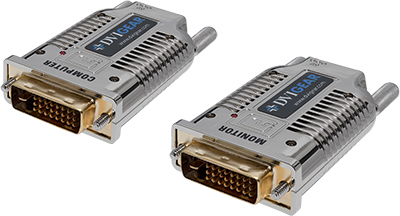

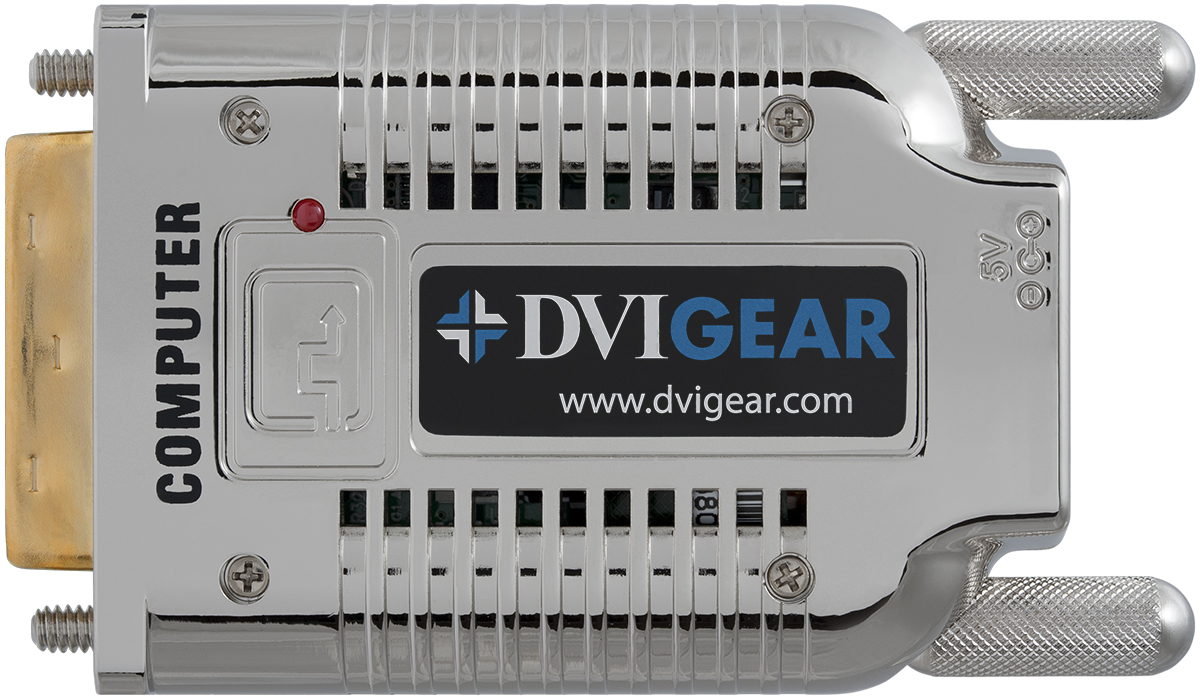

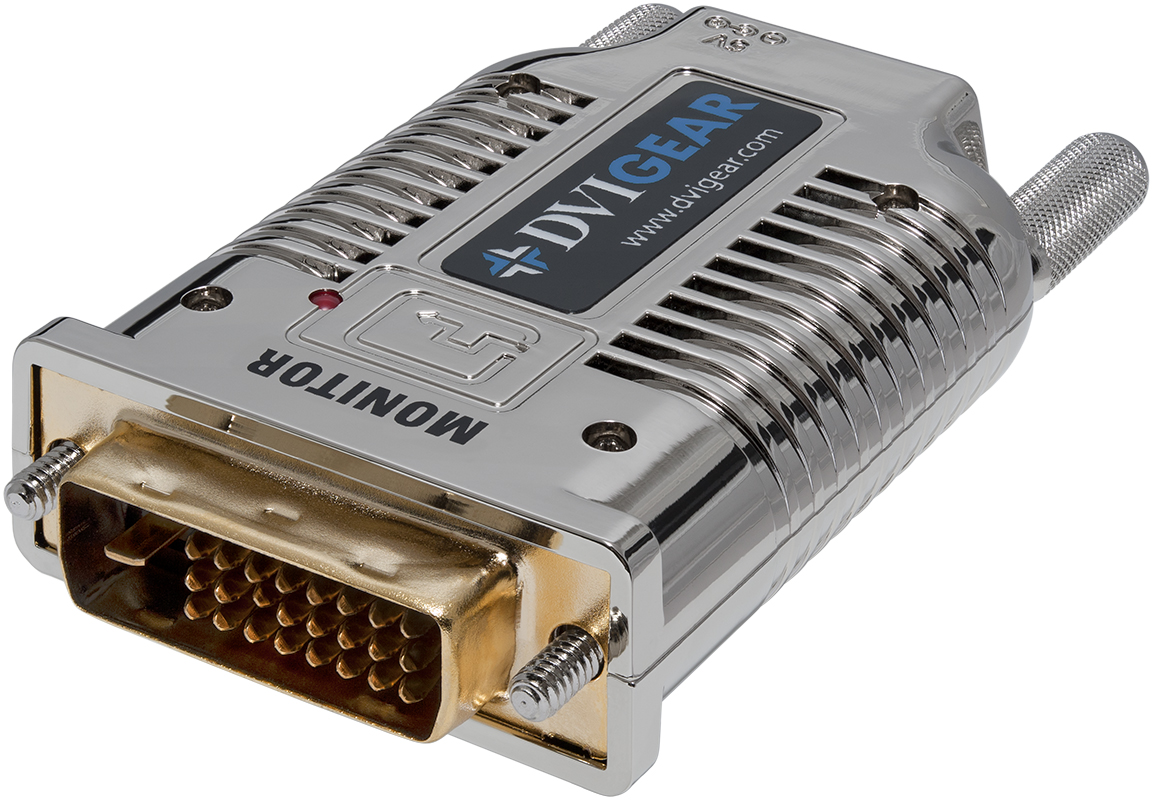

The DVI-7315 Fiber Optic Extender is designed to route high resolution DVI signals up to 500 meters with unmatched signal fidelity and transparency. The unit consists of a high-speed optical transmitter module that converts the DVI input signals into light pulses for transmission over a single strand of multi-mode fiber optic cable, and an optical receiver module that converts the light pulses back to a DVI signal for display on a monitor or projector. A programmable memory chip provides EDID support for any display without the need for a copper cable. These features make the DVI-7315 the perfect solution for critical display applications that demand flawless DVI signal quality over very long cable runs.

Key Features:

  • Supports HDTV resolutions up to 1080p
  • Supports PC resolutions up to 1600x1200 and 1920x1200
  • Supports digital bit-rates up to 1.65 GBit/sec.
  • Single optical fiber transmission is immune to environmental signal noise.

  • Low RFI / EMI profile for sensitive application
  • Built-in programmable EDID memory - eliminates the need for DDC connection
  • Transmitter unit can be powered by DVI source or by optional +5VDC external power supply.
  • Receiver unit is powered by +5VDC external power supply.
Connections:

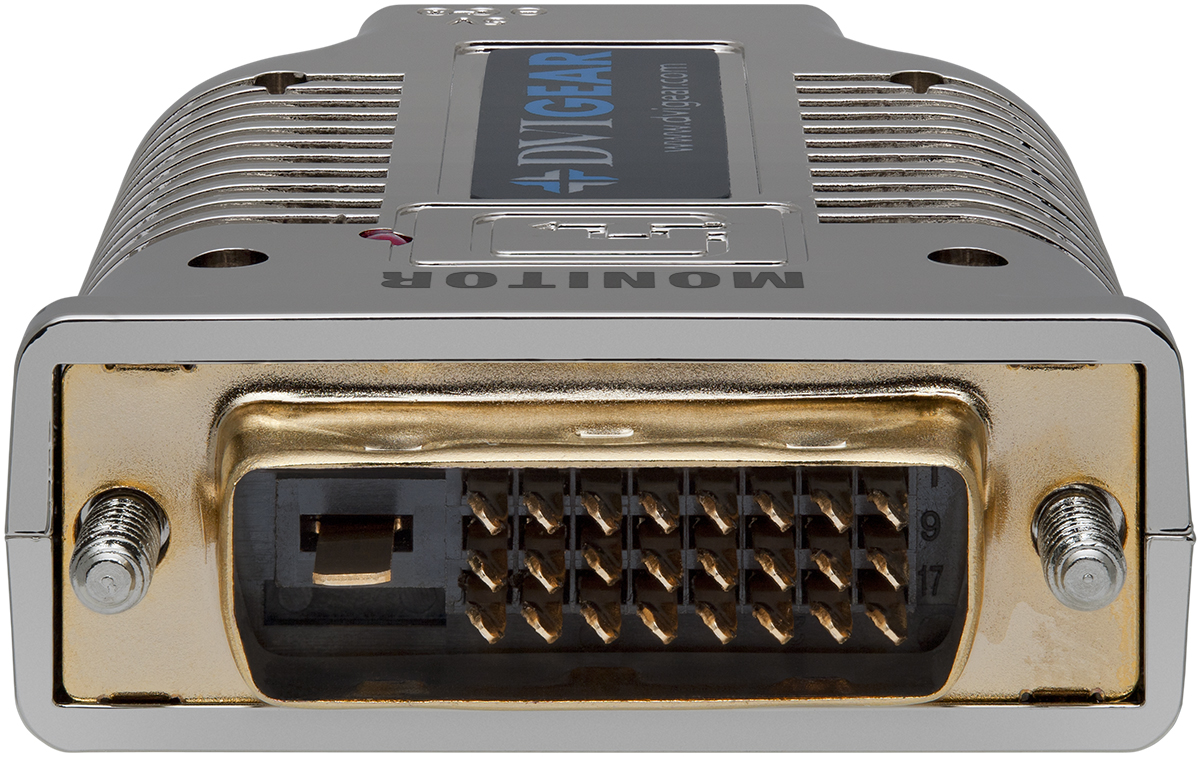

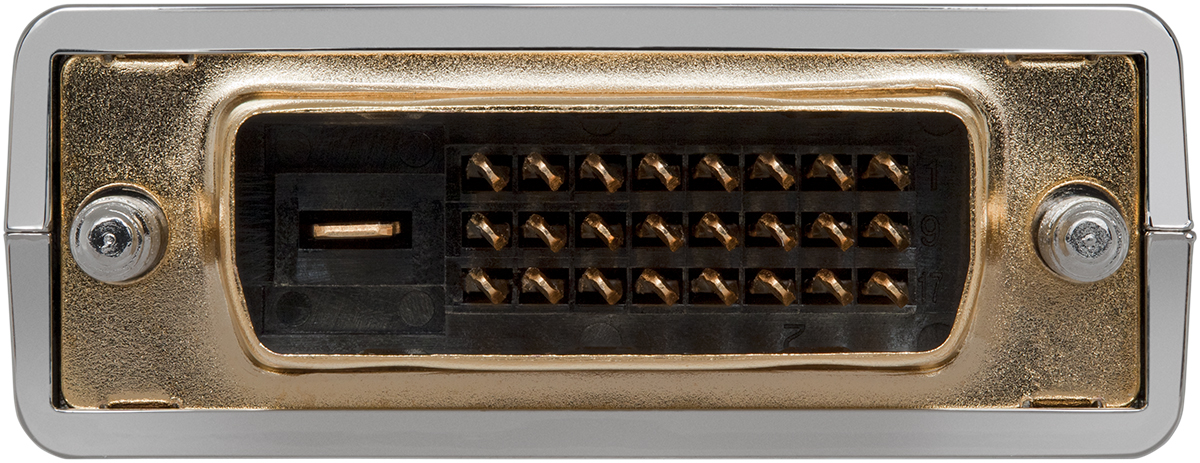

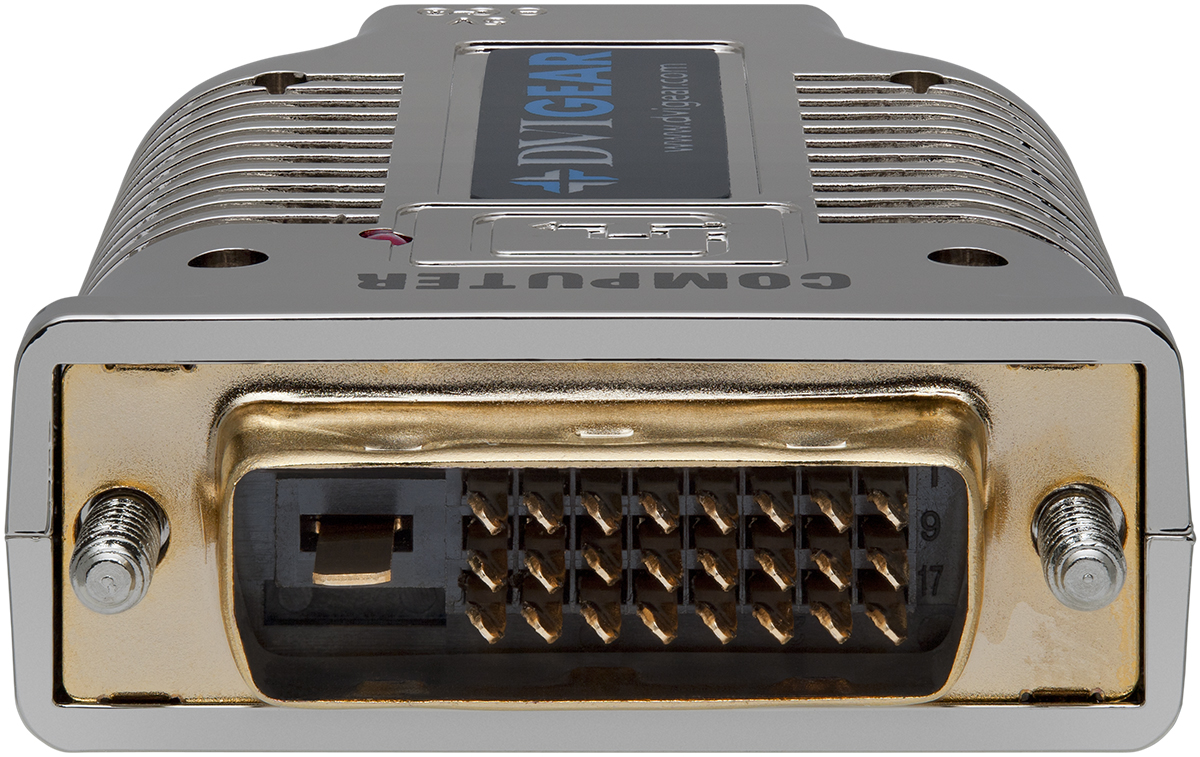

DVI Input / DVI Output 25-pin Male DVI-D Connector

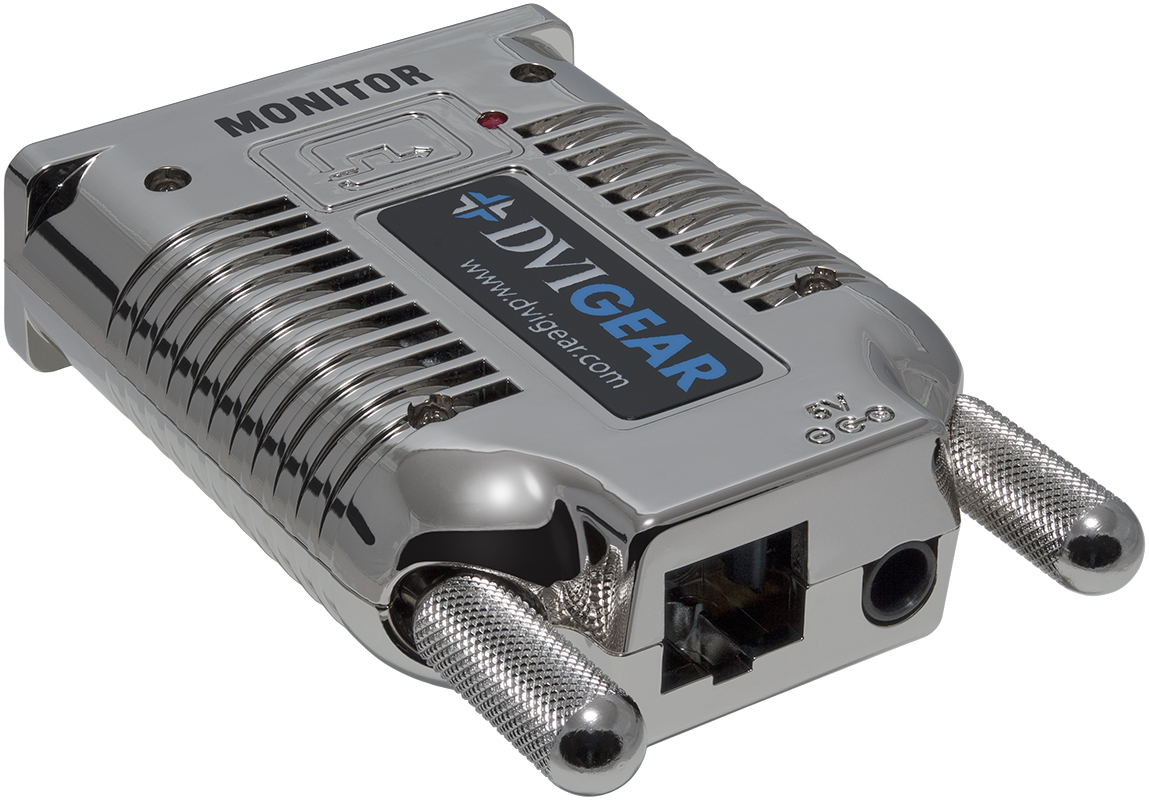

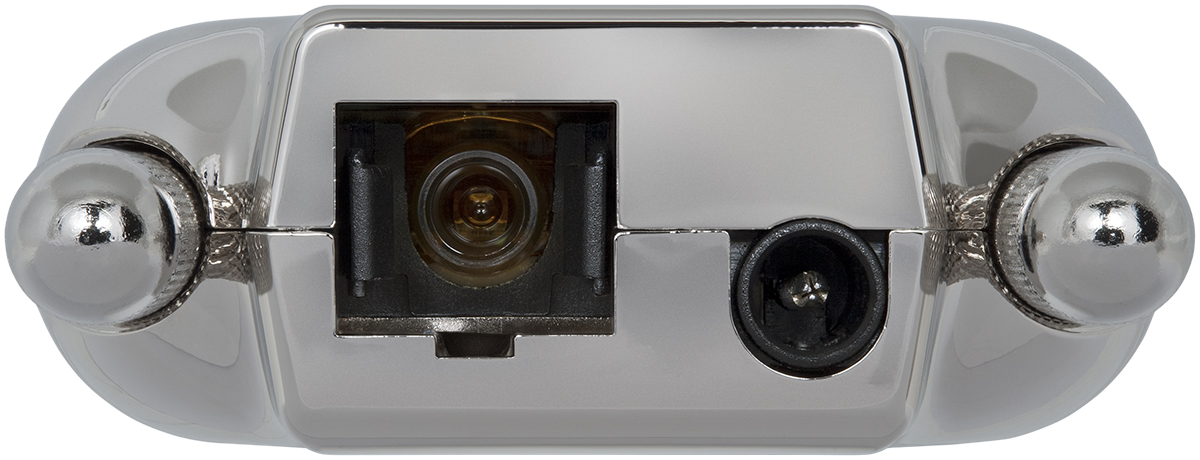

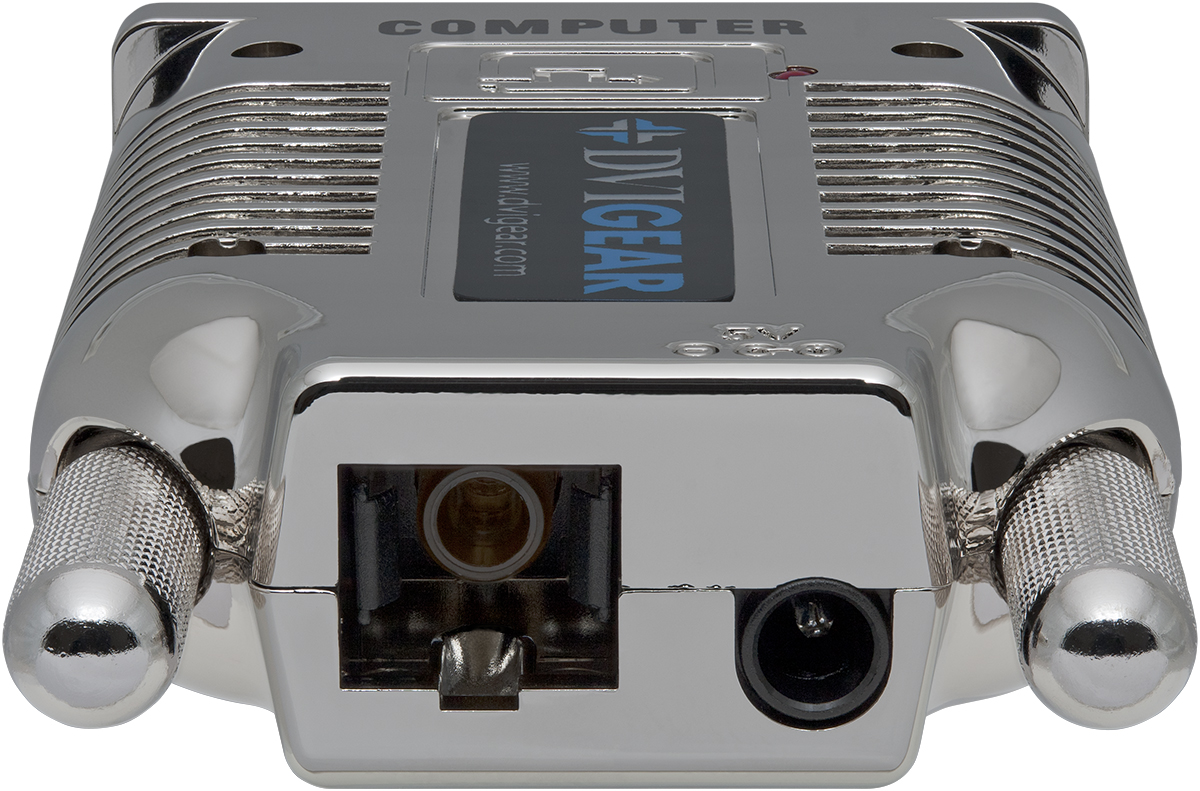

Optical 1x SC Fiber Optic Connector
Power 3.5mm jack
Resolution:
PC Supports all Single-Link resolutions up to 1600x1200 and 1920x1200
HDTV Supports HDTV resolutions up to 1080p and 2048x1080
Bandwidth:
Pixel Rates Supports Pixel clock rates up to 165 MHz
Bit Rates Supports digital signal bit rates up to 1.65 GBit/sec
Optical:
Optical Transmitter Tx Module: Quad VCSEL Lasers (CWDM), Class 1 laser product
Optical Receiver Rx Module: Quad PIN Photo Diodes (CWDM)
Fiber Cable 50/125μ LC multi-Mode OM3 Fiber with 1x SC connector per module
Cable Construction:
Custom Lengths Available on request, maximum length = 500 meters / 1640 ft.
Cable Jacket OFNP, Plenum Rated PVC Jacket (black or blue)
Cable Outside Diameter 2.9 mm
DDC Support:
EDID Support An EDID memory built into the Tx module can learn and store the display's EDID info, thereby eliminating the need for a DDC connection using copper cables.
HDCP Support HDCP communications are NOT supported!
Power:
Optical Transmitter Tx module requires at least 180 ma of DC current from pin 14 of DVI (source) connector. Optional external power supply may be used if needed.
Optical Receiver Must be powered using the supplied external power supply
External Power Supply Input: 100-240VAC, 50-60Hz 0.2A / Output: +5VDC @ 0.5A
Mechanical:
Construction High impact plastic enclosure with metallic finish
Dimensions (L x W x H) 2.61" x 1.57" x 0.59" (66.4 mm x 40.0 mm x 15.0 mm)
Weight Net Weight: 0.16 lb. / 72g | Shipping Weight: 1.0 lb. / 454g
Environmental:
Storage -4° to +158° F. | -20° to +70° C.
Operation +32° to +122° F. | 0° to +70° C.
Relative Humidity 10% to 80%
Compliance:
This product is RoHS and CE compliant
