|  | DVI Test Generator
 Download User Manual

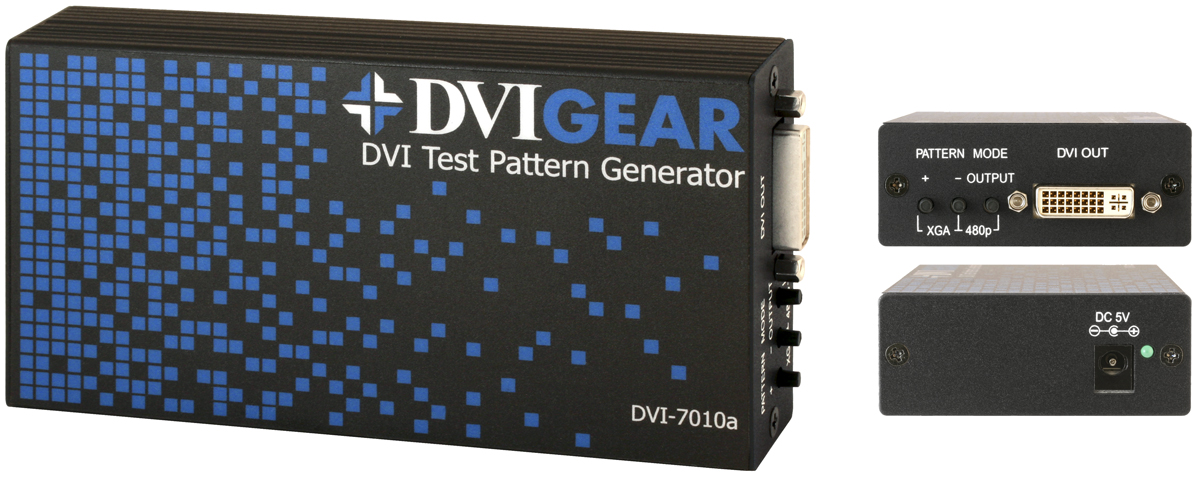

This versatile DVI Test Pattern Generator provides instant access to 28 different test patterns with a wide variety of output resolutions and refresh rates. The unit is housed in a rugged, ultra-compact metal enclosure and is an indispensable resource for service and set-up applications where a reference DVI source is needed.
Key Features:
- 28 Test Patterns
- Wide variety of PC and HDTV output resolutions
- RGBHV and YPbPr outputs
- DVI-I connector supports digital and analog outputs
- Ultra-Compact rugged metal enclosure
- External DC power supply with locking connector for added security
Specifications:
|
PC Output Resolutions
|
Vertical Rate |
Format |
| VGA |
640x480 |
50,60,72,75,85 Hz |
RGBHV |
| SVGA |
800x600 |
50,60,72,75,85 Hz |
RGBHV |
| XGA |
1024x768 |
50,60,72,75,85 Hz |
RGBHV |
| WXGA |
1280x768 |
50,60Hz |
RGBHV |
| SXGA |
1280x1024 |
50,60Hz |
RGBHV |
|
HDTV Output Resolutions
|
Vertical Rate |
Format |
| 480p |
720x480 |
50,60Hz |
YPbPr |
| 576p |
720x576 |
50,60Hz |
YPbPr |
| 720p |
1280x720 |
50,60Hz |
YPbPr |
| 1080i |
1920x1080 |
50,60Hz |
YPbPr |
| SXGA |
1280x1024 |
50,60Hz |
YPbPr |
| I/O Connections |
| Output Format |
Digital or Analog RGBHV, YPbPr or YCbCr |
| Output Connection |
24 Pin Female DVI-I Connector |
| DC Power Input |
3.5 mm locking jack for greater security |
| Control |
Control Panel Buttons |
| Available Test Patterns |
| Color Bars |
Color Bars/Multi-Burst2 |
| Grayscale Steps - Light > Dark |
Multi-Burst2 |
| Grayscale Steps - Dark > Light |
Checkerboard |
| Fade - Black to White |
White Field |
| Cross Hatch - Standard |
Yellow Field |
| Cross Hatch - Small |
Cyan Field |
| Chinese Characters 1 |
Green Field |
| Chinese Characters 2 |
Magenta Field |
| Chinese Characters 3 |
Red Field |
| Alternating 1 Pixel B/W Lines |
Blue Field |
| Alternating 2 Pixel B/W Lines |
Black Field |
| Alternating 3 Pixel B/W Lines |
H Pattern |
| Alternating 4 Pixels B/W Lines |
E Pattern |
| Large Circles |
Circles - Repeating |
| Mechanical |
| Dimensions (H x W x D) |
1" x 7" x 4" (25 x 175 x 100 mm) |
| Weight |
1.5 lbs (680 g) |
| Environmental |
| Operating Temperature |
+0° to +40° C (+32° to +104° F) |
| Operating Humidity |
10% to 85% (non-condensing) |
| Storage Temperature |
-20° to +60° C (+20° to +140° F) |
| Storage Humidity |
10% to 85% (non-condensing) |
| Power Requirements |
| External AC Power Adapter |
Input: 100-240VAC @50/60Hz Output: 5VDC @ 2A |
| Regulatory Approvals |
| Test Pattern Generator |
FCC, CE, RoHS |
| Power Supply |
UL, CE, CSA, CEC, RoHS |
| Warranty |
| Limited Warranty |
1 Year Parts and Labor |
| Model Number |
| DVI-7010a |
DVI Test Pattern Generator |
| Accessories Included |
| 1x External AC Power Adaptor, 1x User Guide |
| Notes |
| (1) The 1080i output is actually a doubled 540p signal, which is recognized as a 1080i by most HDTV displays |
| (2) Not a true Multi-Burst. Alternating B/W Vertical Lines. |
|
|
