MXP Series Digital Matrix Routing Switchers
HDMI + HDCP Fiber Optic Extender
Model No:  DVI-MXP


Availability: Contact us for application support
and price quote




DVIGear's MXP Series are high-performance digital matrix switchers that offer an unprecedented range of cross-platform routing capabilities.  The core of the MXP Series is a high-speed digital routing engine that is available in multiple card frames, enabling I/O configurations from 9x9 up to 80x80.  Utilizing advanced modular architecture, the MXP Series offers a wide range of over sixty (60) I/O cards, which provide system designers exceptional flexibility to mix and match cards to achieve a limitless array of cross-platform routing configurations.  New I/O cards are added to the MXP Series range regularly, further expanding the product's capabilities.

The MXP Series are non-blocking crosspoint matrix switchers that allow any input to be routed to any number or combination of outputs.  Complex routing maps can be stored and recalled easily with a single click.  Many different signal formats are easily accommodated, including single-link DVI, dual-link DVI, HDMI, DisplayPort, SD-SDI, HD-SDI, 3G-SDI, analog VGA, Component Video, etc.  Furthermore, several cable types can be connected directly to and from the router including copper cables, twisted pair (CAT-X), and optical cables with various types of connectors.  A complete range of digital end-point products are available that allow sources and destinations to interface directly to MXP Series switchers, which provides system designers with a complete end-to-end solution.

Copper cable inputs with built-in equalization support direct connection of cables with lengths up to 60 meters (197 ft.).   New TPS I/O cards utilize HDBaseT™ technology and support HDMI / DVI signal extension over CAT-X cables up to 180 meters (590 ft.).  Output signals are re-clocked to ensure precise, jitter-free signal transmission.  The unit’s internal signal lanes are meticulously balanced for proper differential impedance, resulting in unsurpassed signal fidelity and stability.

The MXP Series offers Advanced EDID Management that provides total user control over every aspect of EDID handling.  All inputs can be presented with EDID values from any connected or captured display or from an internal set of 100 EDID values, 50 of which can be user-defined and/or user-created.  The MXP Series can be controlled by USB connection, RS232 / RS422 serial port, TCP/IP Ethernet connection, and by LAN using a built-in web interface.  All MXP Series switchers include a comprehensive suite of control software that allows users and administrators to exploit the unit’s maximum potential.

Key Features:

  • Non-Blocking Crosspoint Matrix Architecture with router configurations: 9x9 up to 80x80
  • Advanced Modular Design with over 60 types of Input / Output cards
  • Digital end-points with remote power allow interfacing with various sources and displays
  • Supports HDMI 4K (UHD) 24Hz, 30Hz resolution. Supports 1080p /60Hz with 8-bit, 10-bit, and 12-bit color
  • Supports single-link PC resolutions up to 1920x1200 and 2048x1080 pixels; dual-link PC resolutions up to 3840x2400 pixels
  • Cable equalization on inputs – up to 60 meters (197 ft.)

  • Pixel Accurate Re-Clocking on outputs for minimum jitter and maximum stability
  • Advanced Power Management, Error Detection, Diagnostics and Signal Analysis Tools (Frame Detector)
  • Advanced EDID Management – learns, stores and emulates up to 100 EDID data sets
  • Powerful Matrix Controller and EDID Creation Software included with all units
  • USB, RS232, TCP/IP LAN and web browser interface for remote system management and control
  • Remote Power for downstream extenders and fiber optic cables

Available I/O Configurations:*

  8
Inputs
16
Inputs
24
Inputs
32
Inputs
40
Inputs
48
Inputs
56
Inputs
64
Inputs
72
Inputs
80
Inputs
8 Outputs
8x8 16x8 24x8 32x8 40x8 48x8 56x8 64x8 72x8 80x8
16 Outputs
8x16 16x16 24x16 32x16 40x16 48x16 56x16 64x16 72x16 80x16
24 Outputs
8x24 16x24 24x24 32x24 40x24 48x24 56x24 64x24 72x24 80x24
32 Outputs
8x32 16x32 24x32 32x32 40x32 48x32 56x32 64x32 72x32 80x32
40 Outputs
8x40 16x40 24x40 32x40 40x40 48x40 56x40 64x40 72x40 80x40
48 Outputs
8x48 16x48 24x48 32x48 40x48 48x48 56x48 64x48 72x48 80x48
56 Outputs
8x56 16x56 24x56 32x56 40x56 48x56 56x56 64x56 72x56 80x56
64 Outputs
8x64 16x64 24x64 32x64 40x64 48x64 56x64 64x64 72x64 80x64
72 Outputs
8x72 16x72 24x72 32x72 40x72 48x72 56x72 64x72 72x72 80x72
80 Outputs
8x80 16x80 24x80 32x80 40x80 48x80 56x80 64x80 72x80 80x80

*Note: N+1 I/O Port is included on CPU Card.

MXP Series - Input Boards:

DVIGear Model No. Product Description
DVI-MXP-DVID-IB
MXP 8-Port Single-Link DVI-D Input Board
DVI-MXP-DVI-HDCP-IB
MXP 8-Port Single-Link DVI+HDCP Input Board
DVI-MXP-DVI-I-HDCP-IB
MXP 8-Port Single-Link DVI-I + HDCP Input Board
DVI-MXP-DVI-TP-IB
MXP 8-Port DVI-D CAT6 (RJ45) Input Board
DVI-MXP-DVI-TP-IB+
MXP 8-Port DVI-D CAT6 (2x RJ45) Input Board +RPwr
DVI-MXP-OPT-IB-LC
MXP 8-Port DVI-D LC Optical Input Board
DVI-MXP-OPT-IB-NT
MXP 8-Port DVI-D NT Optical Input Board
DVI-MXP-OPT-IB-SC
MXP 8-Port DVI-D SC Optical Input Board
DVI-MXP-OPT-IB-ST
MXP 8-Port DVI-D ST Optical Input Board
DVI-MXP-DVI-DL-IB
MXP 4-Port Dual-Link DVI Input Board
DVI-MXP-DL-OPT-IB-LC
MXP 4-Port Dual-Link DVI Optical Input Board, LC
DVI-MXP-DL-OPT-IB-SC
MXP 4-Port Dual-Link DVI Optical Input Board, SC
DVI-MXP-DL-OPT-IB-ST
MXP 4-Port Dual-Link DVI Optical Input Board, ST
DVI-MXP-DL-OPT-IB-NT
MXP 4-Port Dual-Link DVI Optical Input Board, NT
DVI-MXP-HDMI-IB
MXP 8-Port HDMI v1.3 Input Board
DVI-MXP-HDMI-TP-IB
MXP 8-Port HDMI v1.3 CAT6 (2x RJ45) Input Board
DVI-MXD-HDMI-TP-IB
MXD 8-Port HDMI + RS232 CAT6 (2x RJ45) Input Board
DVI-MXP-HDMI-OPT-IB-LC
MXP 8-Port HDMI v1.3 LC Optical Input Board
DVI-MXP-HDMI-OPT-IB-SC
MXP 8-Port HDMI v1.3 SC Optical Input Board
DVI-MXP-HDMI-OPT-IB-ST
MXP 8-Port HDMI v1.3 ST Optical Input Board
DVI-MXP-HDMI-OPT-IB-NT
MXP 8-Port HDMI v1.3 NT Optical Input Board
DVI-MXD-UMX-IB
MXD 8-Port Universal Video+Audio Input Board
DVI-MXP-3G-SDI-IB
MXP 8-Port SDI, HD-SDI, 3G Input Board
DVI-MXP-HDMI-4K-IB
MXP 8-Port HDMI 4K Input Board    New !
DVI-MXP-HDMI-4KA-IB
MXP 8-Port HDMI 4K + Analog Audio Input Board    New !
DVI-MXP-HDMI-4KD-IB
MXP 8-Port HDMI 4K + Digital Audio Input Board    New !
DVI-MXP-TPS-IB
MXP 8-Port TPS Input Board    New !
DVI-MXP-TPS-A-IB
MXP 8-Port TPS + Analog Audio Input Board    New !
DVI-MXP-TPS-D-IB
MXP 8-Port TPS + Digital Audio Input Board    New !

MXP Series - Output Boards:

DVIGear Model No. Product Description
DVI-MXP-DVID-OB
MXP 8-Port Single-Link DVI-D Output Board
DVI-MXP-DVI-HDCP-OB
MXP 8-Port Single-Link DVI+HDCP Output Board
DVI-MXP-DVI-TP-OB
MXP 8-Port DVI-D CAT6 (RJ45) Output Board
DVI-MXP-DVI-TP-OB+
MXP 8-Port DVI-D CAT6 (2x RJ45) Output Board +RPwr
DVI-MXP-OPT-OB-LC
MXP 8-Port DVI-D LC Optical Output Board
DVI-MXP-OPT-OB-SC
MXP 8-Port DVI-D SC Optical Output Board
DVI-MXP-OPT-OB-ST
MXP 8-Port DVI-D ST Optical Output Board
DVI-MXP-OPT-OBR-LC
MXP 8-Port DVI-D LC Optical Output Board + ReCLK
DVI-MXP-OPT-OBR-SC
MXP 8-Port DVI-D SC Optical Output Board + ReCLK
DVI-MXP-OPT-OBR-ST
MXP 8-Port DVI-D ST Optical Output Board + ReCLK
DVI-MXP-OPT-OBR-NT
MXP 8-Port DVI-D NT Optical Output Board + ReCLK
DVI-MXP-DVI-DL-OB
MXP 4-Port Dual-Link DVI Output Board
DVI-MXP-DL-OPT-OB-LC
MXP 4-Port Dual-Link DVI Optical Output Board, LC
DVI-MXP-DL-OPT-OB-SC
MXP 4-Port Dual-Link DVI Optical Output Board, SC
DVI-MXP-DL-OPT-OB-ST
MXP 4-Port Dual-Link DVI Optical Output Board, ST
DVI-MXP-DL-OPT-OB-NT
MXP 4-Port Dual-Link DVI Optical Output Board, NT
DVI-MXP-HDMI-OB
MXP 8-Port HDMI v1.3 Output Board
DVI-MXP-HDMI-TP-OB
MXP 8-Port HDMI v1.3 CAT6 (2x RJ45) Output Board
DVI-MXD-HDMI-TP-OB
MXD 8-Port HDMI + RS232 CAT6 (2x RJ45) Output Board
DVI-MXP-HDMI-OPT-OB-LC
MXP 8-Port HDMI v1.3 LC Optical Output Board
DVI-MXP-HDMI-OPT-OB-SC
MXP 8-Port HDMI v1.3 SC Optical Output Board
DVI-MXP-HDMI-OPT-OB-ST
MXP 8-Port HDMI v1.3 ST Optical Output Board
DVI-MXP-HDMI-OPT-OB-NT
MXP 8-Port HDMI v1.3 NT Optical Output Board
DVI-MXP-HDMI-4K-OB
MXP 8-Port HDMI 4K Output Board    New !
DVI-MXP-HDMI-4KA-OB
MXP 8-Port HDMI 4K + Analog Audio Output Board    New !
DVI-MXP-HDMI-4KD-OB
MXP 8-Port HDMI 4K + Digital Audio Output Board    New !
DVI-MXP-TPS-OB
MXP 8-Port TPS Output Board    New !
DVI-MXP-TPS-A-OB
MXP 8-Port TPS + Analog Audio Output Board    New !
DVI-MXP-TPS-D-OB
MXP 8-Port TPS + Digital Audio Output Board    New !

Specifications:

Input / Output Array Sizes
From 9x9 to 80x80
Routing Architecture
Cross-platform, non-blocking - any input(s) to any output(s)
Supported Resolutions
Single-Link DVI up to 1920x1200 /60p and 2048x1080 /60p
Dual-Link DVI up to 3840x2400 /60p
HDMI (4K) up to 4096x2160 /24p /30p
Maximum Bit Rate
Supports up to 2.25 Gbps per color
Cable Equalization
40 db @ 825 MHz with adaptive or manually adjustable correction
Re-Clocking
Outputs are re-clocked for minimum jitter and maximum stability
EDID Management
> 100 memories:  50 factory preset, 50 user-programmable
RS232 / RS422
D-Sub 9-pin female, 9600 Baud for Rx / Tx
LAN
RJ-45, Ethernet 10/100 Base-T auto-sensing
Power Requirements
100-240 VAC / 50-60 Hz, or DC 3.0 Amps
+5VDC Output
500 mA per DVI output connector
Compliance
CE, FCC, EN 55103-1, EN 55103-2, EN 60065 Class I
Warranty
3 Years  Parts & Labor

Available Card Frames:

Frame Type Rack
Height
Input
Boards
Max.
Inputs
Output
Boards
Max.
Outputs
H x W x D
(inches)
H x W x D
(mm)
Net
Weight
DVI-MXP-FR9
4 1 9 1 9 6.9 x 17.3 x 11.8 176.5 x 440 x 300 25.4 lbs. / 11.5 kg
DVI-MXP-FR17
4 2 17 2 17 6.9 x 17.3 x 11.8 176.5 x 440 x 300 25.4 lbs. / 11.5 kg
DVI-MXP-FR33
6 4 33 4 33 10.5 x 17.3 x 11.8 265.5 x 440 x 300 29.8 lbs. / 13.5 kg
DVI-MXP-FR33R
7 4 33 4 33 12.2 x 17.3 x 15.7 309.5 x 440 x 400 36.4 lbs. / 16.5 kg
DVI-MXP-FR65
15 8 65 8 65 26.2 x 17.3 x 15.5 665 x 440 x 393 55.1 lbs. / 25 kg
DVI-MXP-FR80
15 10 80 10 80 26.2 x 17.3 x 15.5 665 x 440 x 393 55.1 lbs. / 25 kg

View Catalog Download Catalog Download Data Sheet Download Application Drawing

Download 4K I/O Catalog Download TPS I/O Catalog

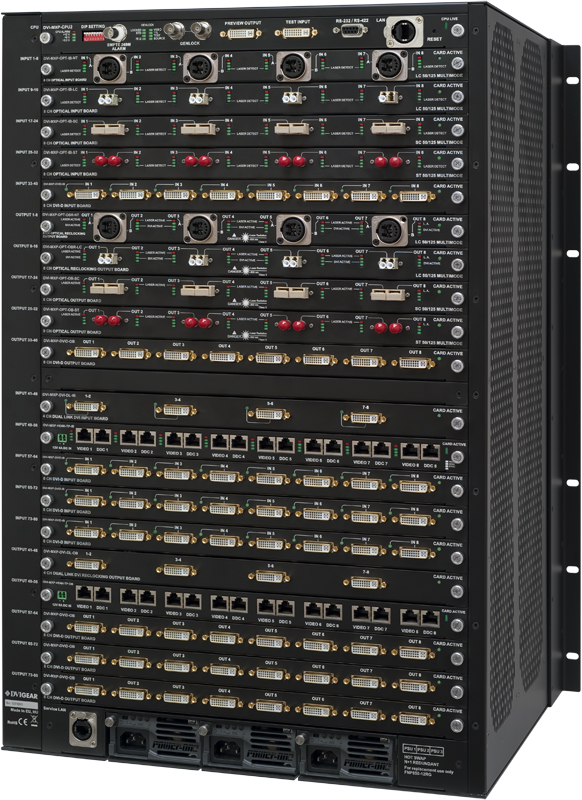

DVI-MXP-FR80

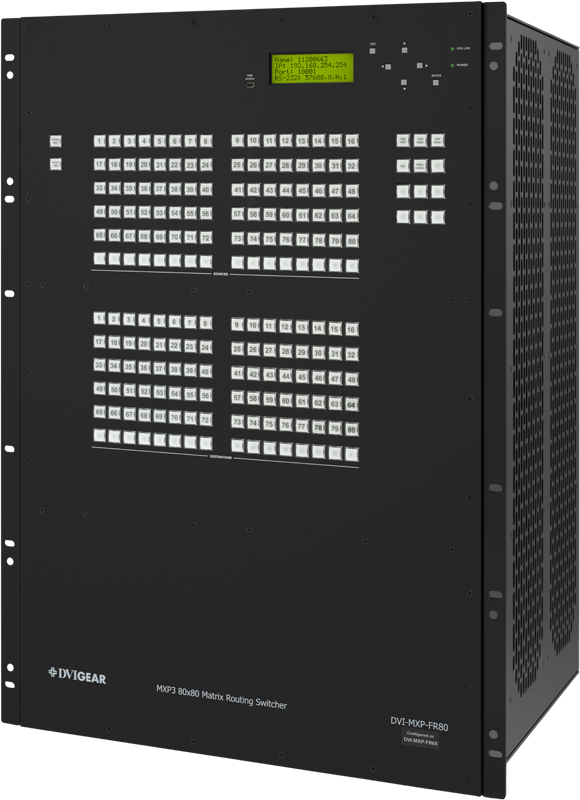

DVI-MXP-FR65
link to large image

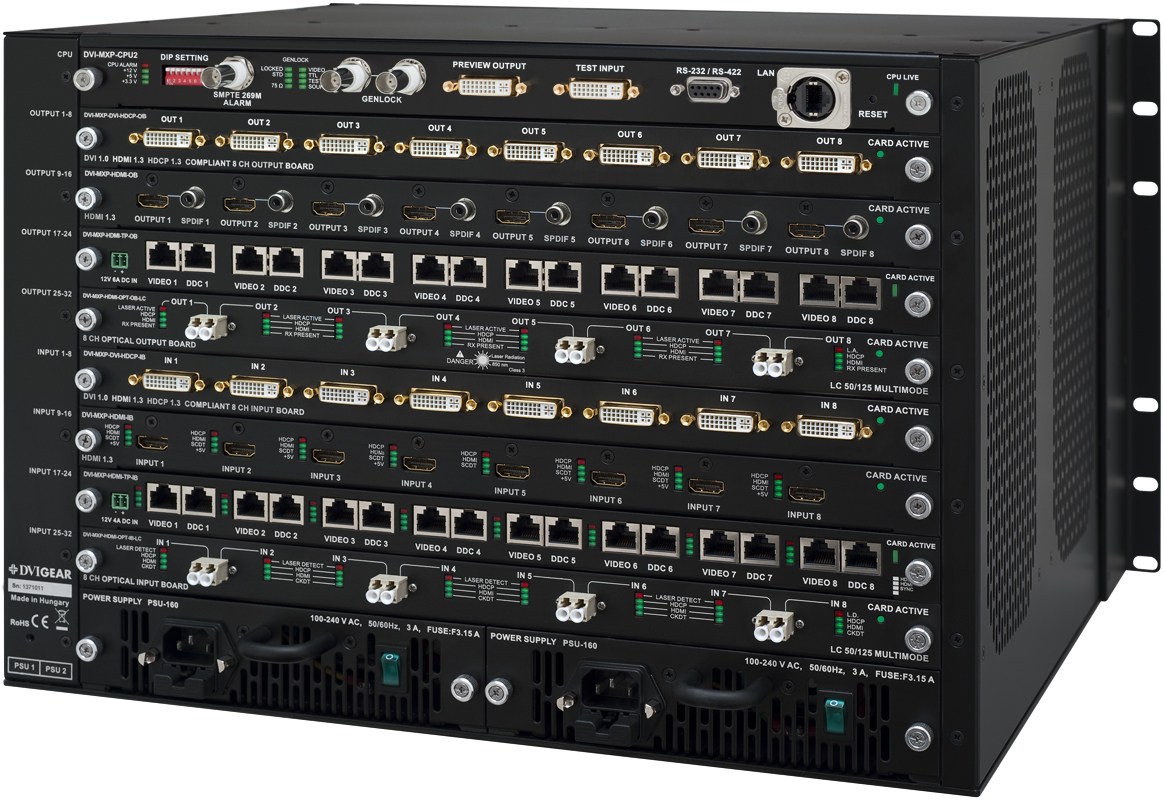

DVI-MXP-FR33R

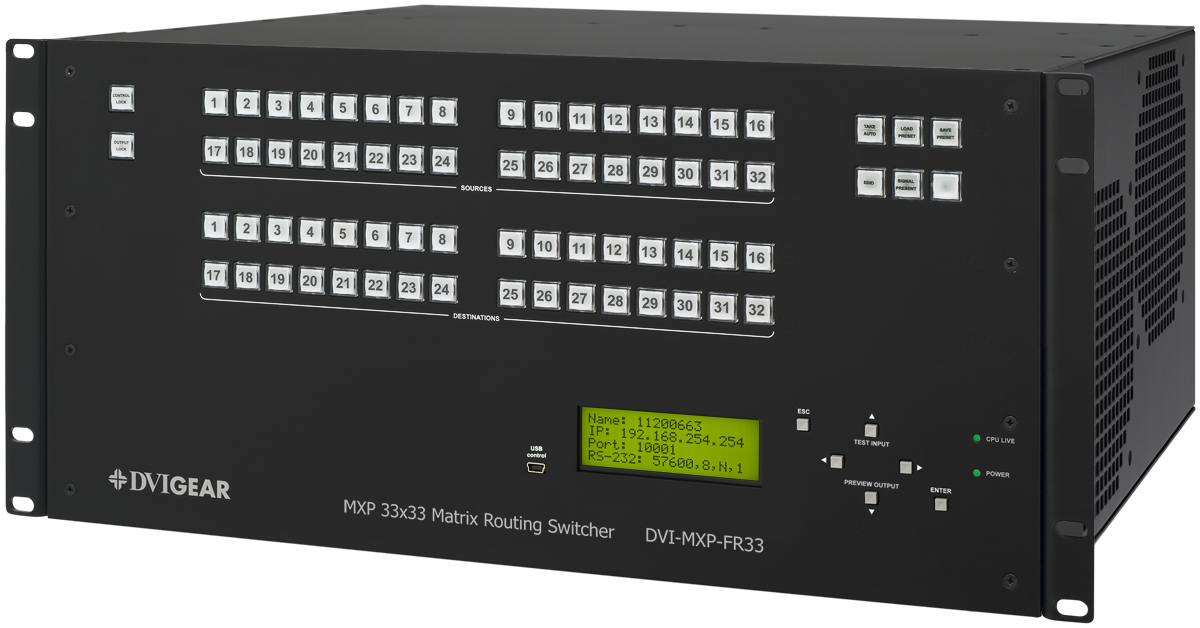

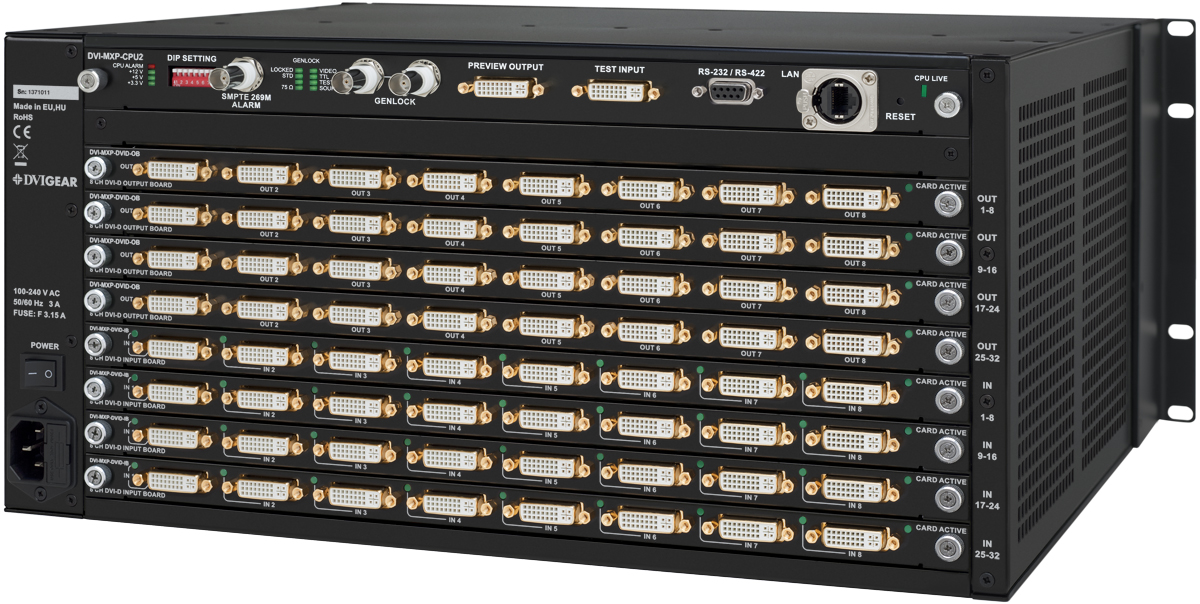

DVI-MXP-FR33

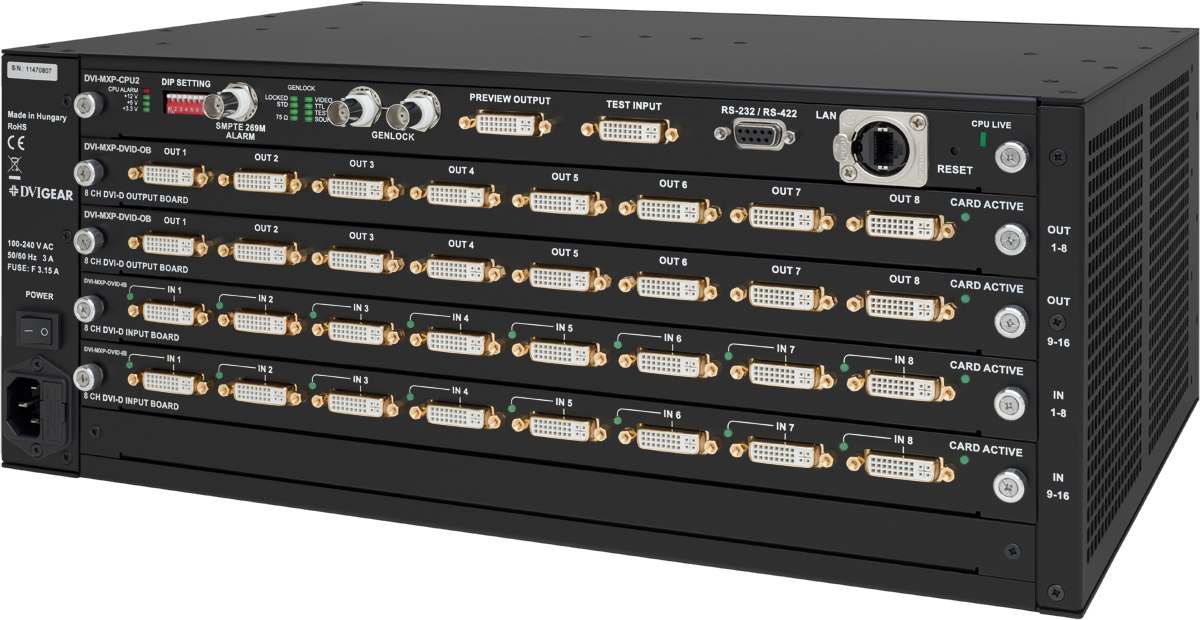

DVI-MXP-FR17

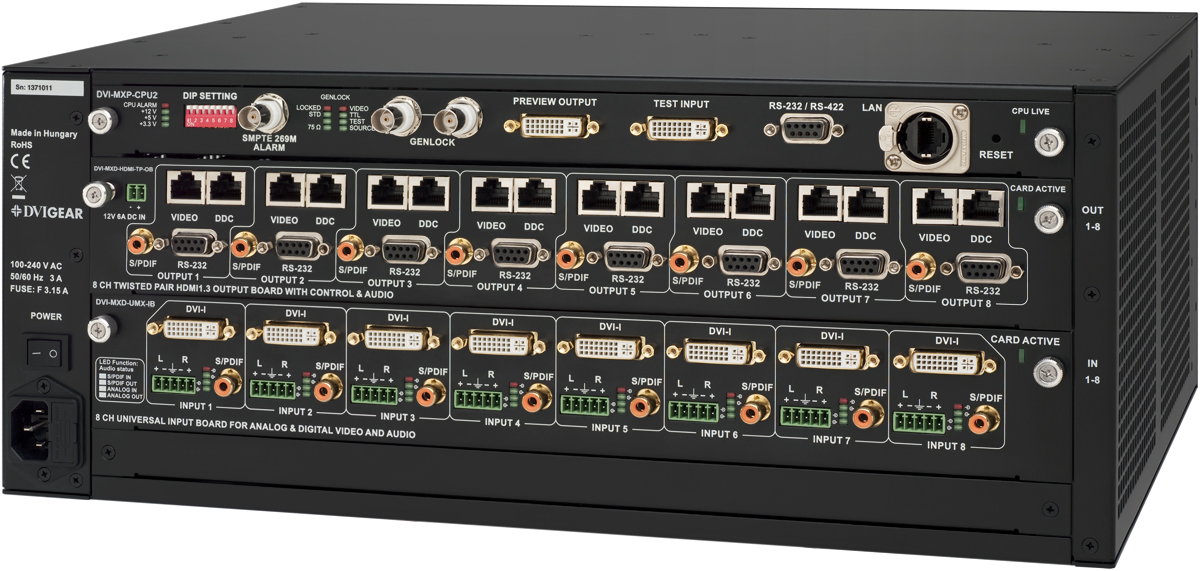

DVI-MXP-FR9
