DVI / HDMI + Audio 1x4 Splitter


Availability: Usually ships the same business day

DVI / HDMI + Audio 1x4 Splitter DVI-5314c$445.00

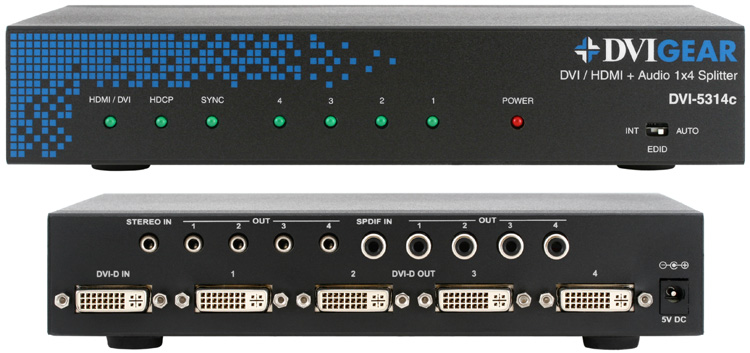

The DVI-5314c is a digital repeater with one (1) DVI and input four (4) independent, re-clocked DVI outputs. All inputs and outputs are fully HDMI v1.3 compatible, which enables full interoperability with both HDMI sources and displays. The unit accepts a single DVI or HDMI input signal, which is de-serialized, buffered and applied to four independent HDMI v1.3 transmitters at each output. This unit also features two independent 1x4 audio distribution amplifiers for analog stereo audio and for digital audio (S/PDIF). The unit supports a full array of DVI and HDMI v1.3 features, which makes it the perfect solution for high-performance DVI and HDMI signal distribution in medium-size display systems.

Key Features:
  • HDMI v1.3, HDCP v1.1 and DVI v1.0 Compliant
  • Supports 8-bit color, as well as 10-bit and 12-bit Deep Color modes
  • Supports PC resolutions up to 1920x1200 pixels
  • Supports HDTV resolutions up to 1080p
  • Supports SDTV resolutions of 480i and 576i
  • Supports Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio (only with HDMI v1.3 input signal)
  • Supports HDMI I/O signals when using optional DVI to HDMI cables
  • Signal Equalization feature enables longer cable runs
  • Switch selection of EDID values:
    • Automatic discovery and management of monitor EDID, or
    • Internal EDID values

  • Two independent 1x4 audio distribution amplifiers support stereo & S/PDIF inputs
  • Rugged metal enclosure - may be rack mounted using optional DVI-5300-RM kit
  • Locking Power Supply Connector for added security
  • RoHS Compliant

Specifications:

Performance
Compliance HDMI v1.3, HDCP v1.1 and DVI v1.0
Maximum Pixel Clock Frequency 225 MHz
Maximum Video Bit Rate 2.25 Gbps (single-link)
Supported Color Depth 8-bit, 10-bit, and 12-bit
Supported HDTV Formats 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
Supported PC Resolutions up to 1920x1200
Input Signal Equalization +10 dB correction @ 825MHz
Maximum Input Cable Length 12.5 meters (41 ft.) using DVIGear SHR™ Series cables
Maximum Output Cable Length 10 meters (33 ft.) using DVIGear SHR™ Series cables
Digital Audio Support Dolby Digital, Dolby Digital Plus,
Dolby True HD and DTS-HD Master Audio -
only with HDMI input signal
Audio Bandwidth 20 Hz to 20KHz
Audio Impedance Stereo Audio: 20Ω, S/PDIF: 75Ω
Audio Levels Stereo Audio: unity, nominal, SPDIF: 0.5 - 1.0 Vpp
I/O Connectors
Video Inputs 1x DVI 29-pin female connectoe
Video Outputs 4x DVI 29-pin female connectors
Audio Inputs 1x analog stereo audio via 3.5mm mini jack
1x S/PDIF via RCA coaxial connector
Audio Outputs 4x analog stereo audio via 3.5mm mini jack
4x S/PDIF via RCA coaxial connector
Mechanical
Dimensions (H-W-D) 1.85" x 8.58" x 5.63" (47 x 218 x 143 mm)
Weight 2.29 lbs. (1040 g)
Environmental
Storage Temperature 0° to +50° C (+32° to +122° F)
Operating Temperature 0° to +50° C (+32° to +122° F)
Humidity (storage / operating) 15% to 90% (non-condensing)
Power Requirements
External AC Power Adapter Input: 100-240VAC @50/60Hz Output: 5VDC @ 2A
Regulatory Approvals
Splitter unit FCC, CE, RoHS, HDMI ATC
AC Power Adapter UL, CE, CSA, CEC, RoHS
Warranty
Limited Warranty 1 Year Parts and Labor
Model Number
DVI-5314c Splitter DVI / HDMI (v1.3) + Audio 1x4
Accessories Included
1x External AC Power Adaptor, 1x User Guide
Optional Accessories
DVI-5300-RM Single/Dual Rack Mount Kit
