DVI / HDMI 1x4 Splitter / Repeater


Availability: Usually ships the same business day

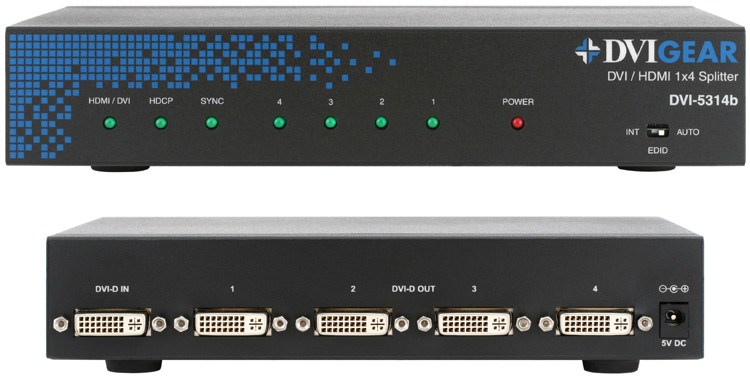

DVI / HDMI 1x4 Splitter / Repeater DVI-5314b$415.00

Download User Guide

Download Data Sheet

Product Description:

The DVI-5314b is a digital repeater with one (1) DVI and input four (4) independent, re-clocked DVI outputs. All inputs and outputs are fully HDMI v1.3 compatible, which enables full interoperability with both HDMI sources and displays. The unit accepts a single DVI or HDMI input signal, which is de-serialized, buffered and applied to four independent HDMI v1.3 transmitters at each output. The unit supports a full array of DVI and HDMI v1.3 features, which makes it the perfect solution for high-performance DVI and HDMI signal distribution in medium-size display systems.

Key Features:

  • HDMI v1.3, HDCP v1.1 and DVI v1.0 Compliant
  • Supports 8-bit color, as well as 10-bit and 12-bit Deep Color modes
  • Supports PC resolutions up to 1920x1200 pixels
  • Supports HDTV resolutions up to 1080p
  • Supports SDTV resolutions of 480i and 576i
  • Supports Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio (only with HDMI v1.3 input signal)
  • Supports HDMI I/O signals when using optional DVI to HDMI cables
  • Signal Equalization feature enables longer cable runs
  • Switch selection of EDID values:
    • Automatic discovery and management of monitor EDID, or
    • Internal EDID values

  • Rugged metal enclosure - may be rack mounted using optional DVI-5300-RM kit
  • Locking Power Supply Connector for added security
  • RoHS Compliant

Specifications:

Performance
Compliance HDMI v1.3, HDCP v1.1 and DVI v1.0
Maximum Pixel Clock Frequency 225 MHz
Maximum Video Bit Rate 2.25 Gbps (single-link)
Supported Color Depth 8-bit, 10-bit, and 12-bit
Digital Audio Support Dolby Digital, Dolby Digital Plus,
Dolby True HD and DTS-HD Master Audio -
only with HDMI input signal
Supported HDTV Formats 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
Supported PC Resolutions up to 1920x1200
Input Signal Equalization +10 dB correction @ 825MHz
Maximum Input Cable Length 12.5 meters (41 ft.) using DVIGear SHR™ Series cables
Maximum Output Cable Length 10 meters (33 ft.) using DVIGear SHR™ Series cables
I/O Connectors
Video Inputs 1x DVI 29-pin female connector
Video Outputs 4x DVI 29-pin female connectors
Mechanical
Dimensions (H-W-D) 1.85" x 8.58" x 5.47" (47 x 218 x 139 mm)
Weight 2.16 lbs. (980 g)
Environmental
Storage Temperature 0° to +50° C (+32° to +122° F)
Operating Temperature 0° to +50° C (+32° to +122° F)
Humidity (storage / operating) 10% to 90% (non-condensing)
Power Requirements
External AC Power Adapter Input: 100-240VAC @50/60Hz Output: 5VDC @ 2A
Regulatory Approvals
Splitter unit FCC, CE, RoHS, HDMI ATC
AC Power Adapter UL, CE, CSA, CEC, RoHS
Warranty
Limited Warranty 3 Years Parts and Labor
Model Number
DVI-5314b Splitter DVI / HDMI (v1.3) 1x4
Accessories Included
1x External AC Power Adaptor, 1x User Guide
Optional Accessories
DVI-5300-RM Single/Dual Rack Mount Kit
