Splitter HDMI (v1.3) 1x8

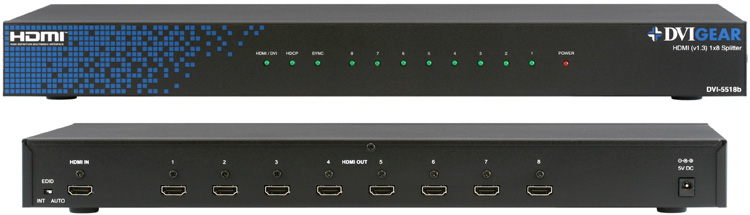

__________________Back View

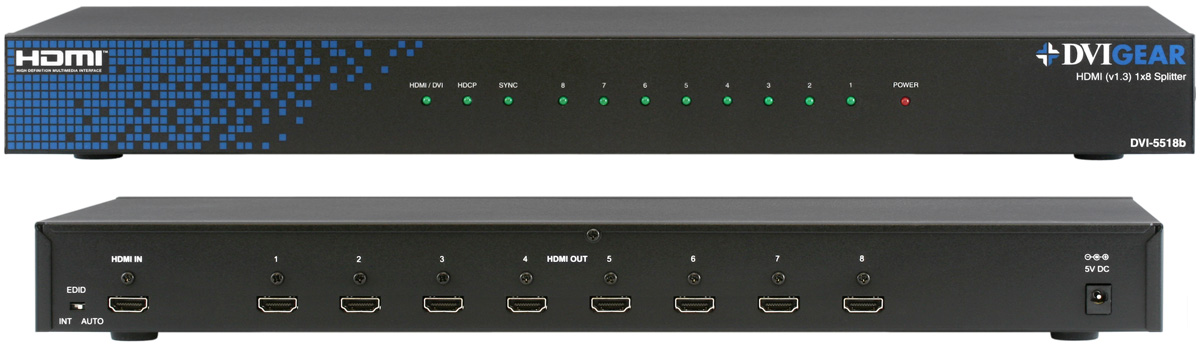

The DVI-5518b 1x8 HDMI Splitter is an HDMI v1.3 compatible digital repeater with eight (8) independent, re-clocked HDMI outputs. The unit accepts a single HDMI input signal, which is de-serialized, buffered and applied to eight independent HDMI v1.3 transmitters at each output. The unit supports a full array of HDMI v1.3 features, which makes it an ideal solution for high-performance HDMI signal distribution in large size display systems.
Key Features:
- HDMI v1.3, HDCP v1.1 and DVI v1.0 Compliant
- Supports 8-bit color, as well as 10-bit and 12-bit Deep Color modes
- Supports PC resolutions up to 1920x1200 pixels
- Supports HDTV resolutions up to 1080p
- Supports SDTV resolutions of 480i and 576i
- Supports Dolby Digital, Dolby Digital Plus, Dolby True HD & DTS-HD Master Audio
- Supports DVI signals when using optional HDMI to DVI adaptors
- Signal Equalization feature enables longer cable runs
- Switch selection of EDID values:
- Automatic discovery and management of monitor EDID, or
- Internal EDID values
- May be rack mounted using supplied mounting ears
- Compatible with locking HDMI cable connectors
- Locking Power Supply Connector for added security
- RoHS Compliant
Specifications:
| Performace |
| Compliance |
HDMI v1.3, HDCP v1.1 and DVI v1.0 |
| Maximum Pixel Clock Frequency |
225 MHz |
| Maximum Video Bit Rate |
2.25 Gbps (single-link) |
| Supported Color Depth |
8-bit, 10-bit, and 12-bit |
| Supported HDTV Formats |
480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| Supported PC Resolutions |
up to 1920x1200 |
| Input Signal Equalization |
+10 dB correction @ 825MHz |
| Maximum Input Cable Length |
12.5 meters (41 ft.) using DVIGear SHR™ Series cables |
| Maximum Output Cable Length |
10 meters (33 ft.) using DVIGear SHR™ Series cables |
| Digital Audio Support |
Dolby Digital, Dolby Digital Plus,
Dolby True HD and DTS-HD Master Audio
|
| I/O Connectors |
| Video Inputs |
1x HDMI 19-pin female connector with screw lock |
| Video Outputs |
8x HDMI 19-pin female connectors with screw locks |
| Mechanical |
| Dimensions (H-W-D) |
1.91" x 17.24" x 6.55" (48.5 x 438 x 166.5 mm) |
| Weight |
4.56 lbs. (2.07 kg) |
| Environmental |
| Storage Temperature |
0° to +50° C (+32° to +122° F) |
| Operating Temperature |
0° to +50° C (+32° to +122° F) |
| Humidity (storage / operating) |
15% to 90% (non-condensing) |
| Power Requirements |
| External AC Power Adapter |
Input: 100-240VAC @50/60Hz Output: 5VDC @ 2A |
| Regulatory Approvals |
| Splitter unit |
FCC, CE, RoHS, HDMI ATC |
| AC Power Adapter |
UL, CE, CSA, CEC, RoHS |
| Warranty |
| Limited Warranty |
1 Year Parts and Labor |
| Model Number |
| DVI-5518b |
HDMI Splitter v1.3 + Audio 1x8 |
| Accessories Included |
| 1x External AC Power Adaptor, 1x User Guide |
|
