The Most Powerful Combination of Features,
Performance and Value on the Market.

Multiple Signals, One Cable

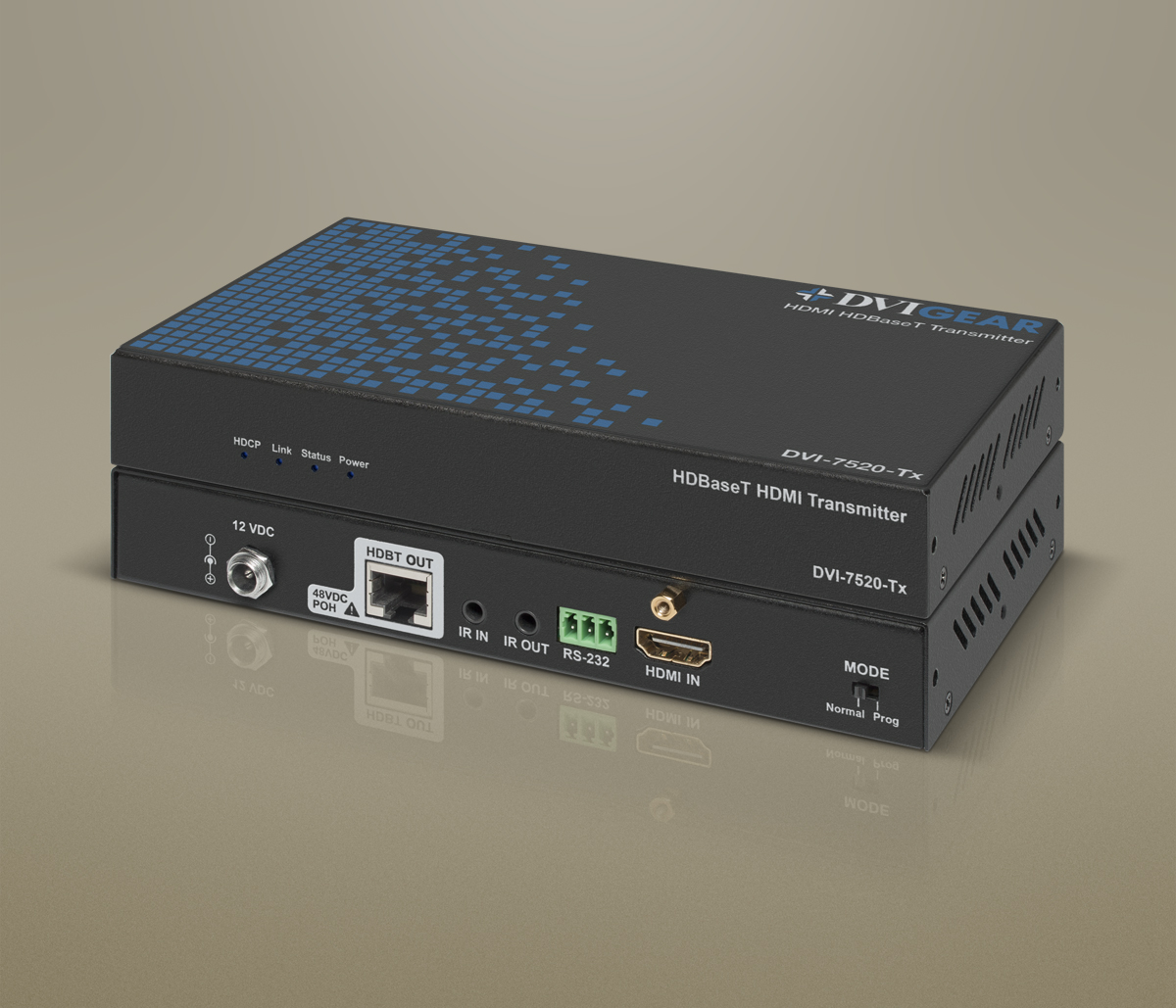

Our new HDBaseT extenders utilize HDBaseT™ technology to provide a simple and cost-effective solution for extension of multiple signals over one category cable.  They extend uncompressed HDMI or DVI, embedded audio, bidirectional IR, RS-232 and Ethernet using a single twisted pair CAT-X cable.

Feature-Rich, Future-Proof

Unlike other products, these extenders support up to the full range of HDBaseT features, including: 5-play, support for 4K/30p (UHD) resolution, bidirectional IR, POH and long-range operation.  It supports extension of HDMI signals with 1080p resolution up to 330 ft. (~ 100 meters) and 4K (UHD) resolution up to 230 ft. (~ 70 meters).

Long Distances, High Resolutions

  • DVI-7520 - 40m @ 4K/30p
  • DVI-7520 - 70m @ 1080p
  • DVI-7525 - 70m @ 4K/30p
  • DVI-7525 - 100m @ 1080p
Power Over HDBaseT (POH)

Power Over HDBaseT (POH)

Overcoming Interoperability Challenges

Today there are many HDBaseT products on the market that utilize non-standard implementations of power over the HDBaseT link.  This problem has created numerous interoperability challenges for system integrators who are faced with HDBaseT products that do not work with each other or, in some cases, actually cause equipment failures.  To solve this problem, the DVI-7520 and DVI-7525 both include a fully-compliant implementation of Power over HDBaseT (POH), a key component of the HDBaseT standard. For POH operation, the transmitter unit acts as a PSE device and provides standardized 48 VDC power, as well as a sophisticated handshake feature that prevents power exchange with incompatible devices.  The receiver unit operates as a PD device and accepts POH from the transmitter, thereby eliminating the need for a cumbersome wall mount power supply unit (PSU).  For non-POH operation, the receiver unit can be powered using an optional PSU.

SCN Product of the Year 2014

Award-Winning Value

The DVI-7525 delivers a powerful combination of advanced features and exceptional performance at very attractive price points, which makes them a true break-through in value for professional AV system integrators.  This makes them ideally suited for a wide range of digital display applications, including rental & staging events, conference and training rooms, boardrooms, auditoriums, hotels, churches, and other demanding environments.  The DVI-7525 was awarded Product of the Year by Systems Contractor News Magazine as one of the best new products of 2014.
