Adapter Right Angle (90) DVI Male to Female

Adapter Right Angle (90) DVI Male to Female


Availability: Usually ships the same business day

DVI-8315a$24.95


Download Data Sheet



Product Description:

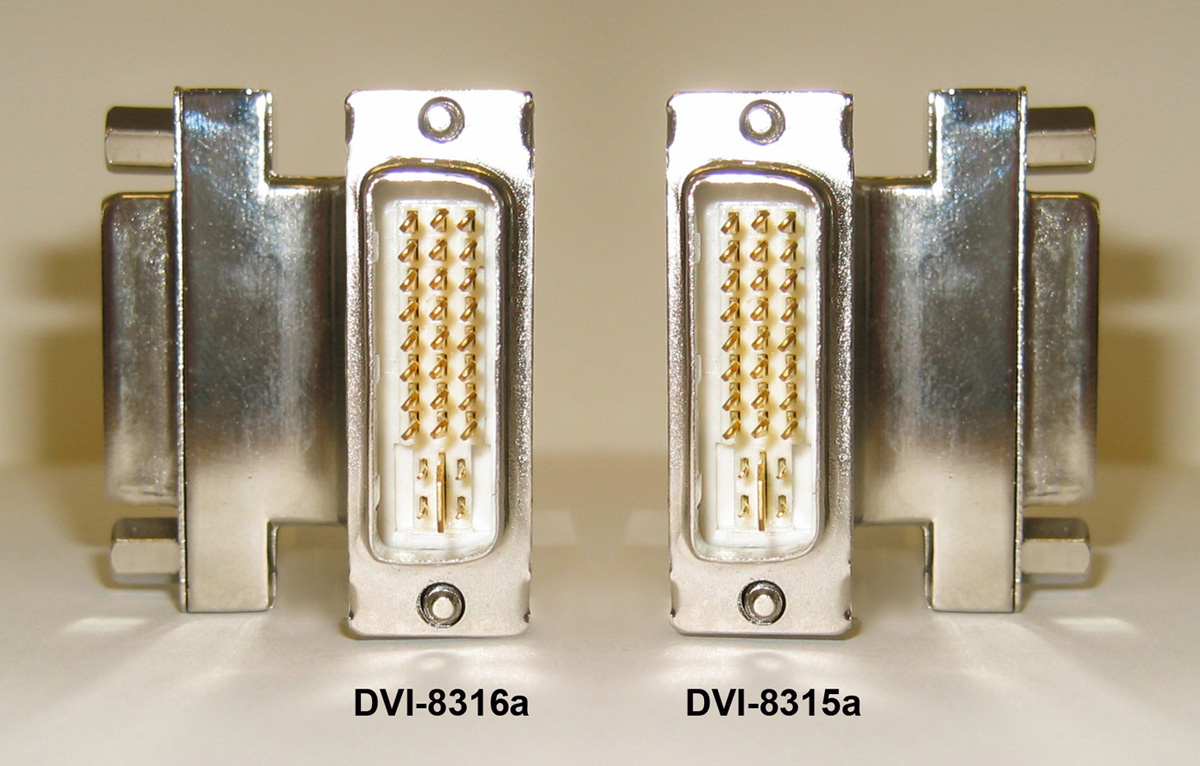

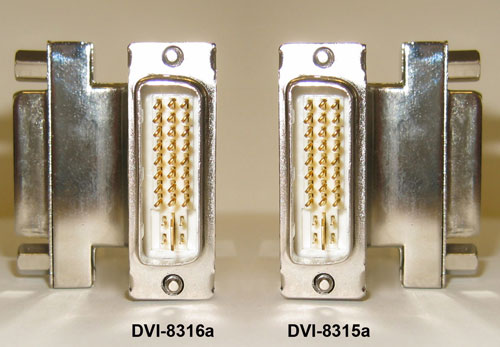

The DVI-8315a and DVI-8316a are high quality Right Angle Adapters designed to enhance DVI cable routing in applications with tight space constraints.

Key Features:

  • DVI Male to Female Right Angle Adapter, internally wired to 18+5 pins
  • Supports all single-link DVI signal formats: DVI-D, DVI-I and DVI-A
  • Support for dual-link DVI formats is available on a special order basis
  • Supports up to 1.65 Gbps per TMDS lane
  • Insertion loss < 1.0 dB @ 825 MHz
  • Rugged metal shell provides superior durability and RFI/EMI Shielding
Specifications:

Mechanical
Connector Types 29-pin DVI Male / Female, internally wired to 18 + 5 pins
Dimensions (L x W x H) 1.24" x 1.57" x 1.48" (31.5 x 40 x 37.5 mm)
Weight Net: 1.83 oz. / 52 g
Shipping: 1.0 lbs. / 0.4k kg
Environmental
Operation 14 to 122 F (-10 to 50 C)
Storage -22 to 158 F (-30 to 70 C)
Compliance FCC Class B, RoHS
Model Numbers
DVI-8315a Adapter Right Angle (90) DVI Male to Female
DVI-8316a Adapter Right Angle (270) DVI Male to Female


Connectivity Reference
Connector A Connector B
DVI-I Male DVI-I Female
