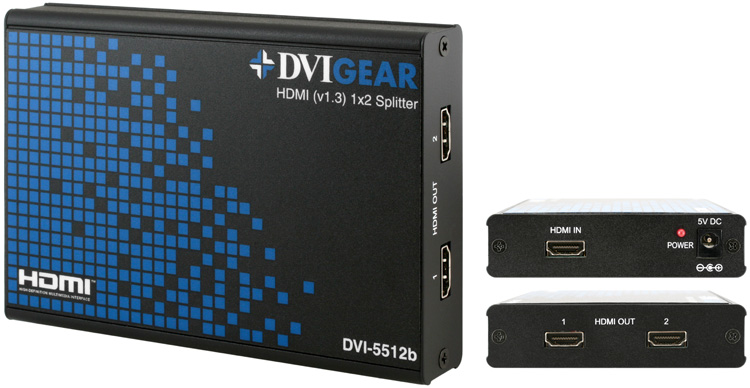

| | HDMI 1x2 Splitter / Repeater

The DVI-5512b 1x2 HDMI Splitter is an HDMI v1.3 compatible digital repeater with two independent, re-clocked HDMI outputs. The unit accepts a single HDMI input signal, which is de-serialized, buffered and applied to two independent HDMI v1.3 transmitters at each output. The unit supports a full array of HDMI v1.3 features, which makes it an ideal solution for high-performance HDMI signal distribution in small or medium-size display systems.
Key Features:
HDMI v1.3, HDCP v1.1 and DVI v1.0 Compliant
Supports 8-bit color, as well as 10-bit and 12-bit Deep Color modes
Supports PC resolutions up to 1920x1200 pixels
Supports HDTV resolutions up to 1080p
Supports SDTV resolutions of 480i and 576i
Supports: Dolby Digital, Dolby Digital Plus, Dolby True HD & DTS-HD Master Audio
Supports DVI signals when using optional HDMI to DVI adaptors
Signal Equalization feature enables longer cable runs
Supports Automatic Discovery of Monitor EDID
Locking Power Supply Connector for added security
RoHS Compliant
Specifications:
Performace |
Compliance |
HDMI v1.3, HDCP v1.1 and DVI v1.0 |
Maximum Pixel Clock Frequency |
225 MHz |
Maximum Video Bit Rate |
2.25 Gbps (single-link) |
Supported Color Depth |
8-bit, 10-bit, and 12-bit |
Digital Audio Support |
Dolby Digital, Dolby Digital Plus,
Dolby True HD and DTS-HD Master Audio
|
Supported HDTV Formats |
480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
Supported PC Resolutions |
up to 1920x1200 |
Input Signal Equalization |
+10 dB correction @ 825MHz |
Maximum Input Cable Length |
12.5 meters (41 ft.) using DVIGear SHR Series cables |
Maximum Output Cable Length |
10 meters (33 ft.) using DVIGear SHR Series cables |
I/O Connectors |
Inputs |
1x HDMI 19-pin female connector |
Output |
2x HDMI 19-pin female connectors |
Mechanical |
Dimensions (H-W-D) |
1.02" x 5.9" x 4.0" (25.9 x 150 x 102 mm) |
Net Weight |
0.68 lbs. (310 g) |
Environmental |
Storage Temperature |
0° to +50° C (+32° to +122° F) |
Operating Temperature |
0° to +50° C (+32° to +122° F) |
Humidity (storage / operating) |
15% to 90% (non-condensing) |
Power Requirements |
External AC Power Adapter |
Input: 100-240VAC @50/60Hz Output: 5VDC @ 2A |
Regulatory Approvals |
Splitter unit |
FCC, CE, RoHS, HDMI ATC |
AC Power Adapter |
UL, CE, CSA, CEC, RoHS |
Warranty |
Limited Warranty |
3 Years Parts and Labor |
Model Number |
DVI-5512b |
HDMI Splitter (v1.3) 1x2 |
Accessories Included |
1x External AC Power Adaptor, 1x User Guide |
|
|
